Orange Cat6 Solid Pure Bare Copper 1000ft Plenum UTP, 550Mhz, 23Awg (0.57mm), Ethernet Network Cable
Orange Cat6 Solid Pure Bare Copper 1000ft Plenum UTP, 550Mhz, 23Awg (0.57mm), Ethernet Network Cable

Orange Cat6 Solid Pure Bare Copper 1000ft Plenum UTP, 550Mhz, 23Awg (0.57mm), Ethernet Network Cable

  • Unshielded Twisted Pair (UTP)
  • 23AWG (0.57mm) Solid Conductor
  • 100% Pure Solid Copper Conductor
  • RoHS Compliant CMP Rated Jacket
  • Support up to PoE++ (IEEE 802.3bt)
  • Tested up to Maximum Bandwidth of 550MHz
  • Premium Quality Solid Copper Twisted Pair Cat6 Cable
  • SKU Code :MC-C6UP-BC-OG
  • Availability :Available
Cat6 Solid Copper

Orange Cat6 Solid Copper 1000ft Ethernet Network UTP 550Mhz 23Awg UTP Cable

The plenum orange cat6 solid copper 1000ft Ethernet network UTP 550Mhz 23Awg cable is not like an ordinary network cable. It consists of quality pure copper cable and comes in orange color. Further, it has eight conductors, which are paired with each other. Hence, there are a total of four pairs, and all are twisted for enhanced performance. Now, its copper conductor has a wire gauge of 23 AWG (American Wire Gauge). This cable has all unshielded pairs. That’s why it is known as UTP cable. Because of these impressive numbers, you can use this cable for your office networking.

Now, solid copper has always been the best conductor for quality data transfer speeds. Therefore, in this case, you’ll be getting quality Ethernet speeds. Talking about the bandwidths speed, you get a maximum bandwidth speed of up to 550 MHz. This speed can be achieved once you have installed these cables in your network system. Further, the transfer rate here is up to one gigabit per second. So, even for high-speed networking, you are all covered here.

Performance that Matters, It’s not just the network speed that this cable promises, the quality conductor and reliable outer housing all combine to ensure better performance. That is why the plenum cat6 orange solid copper 1000ft UTP Ethernet network 550Mhz 23Awg cable has been best-rated for all POE (Power over Ethernet Applications). Also, for advanced applications such as 10BASE-T and 100BASE-TX Fast Ethernet, you can safely consider this cable. So, if we talk about the performance aspect, there is nothing that you miss. It’s all covered.

Get Your Plenum Orange Cat6 Solid Copper 1000ft from Monk Cables

Monk Cables is your home to high-quality Ethernet cables. We have got a variety of these cables in a range of different jackets and colors. The orange cat6 plenum solid copper 1000ft cable is no exception. It is well constructed and meets all defined industry standards. Moreover, our cables are flukes tested and are also TIA/EIA certified. Further, these cables are also RoHS compliant. These all like green cat6 plenum solid copper 1000ft cable comes in quality pull box packaging. So that you can install it in any environment with ease. Further, there is a marking at every foot for convenient cutting.

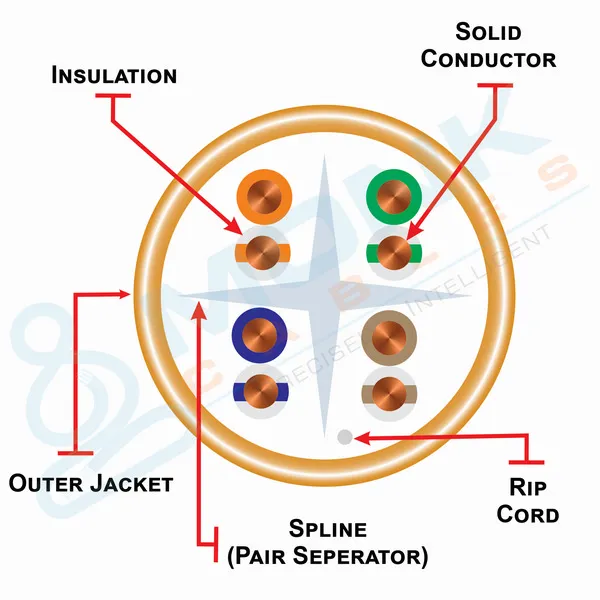

Spline: Yes
Packing: 1000ft Pull Box
Rip Cord: Yes (Nylon)
Shielding: UTP
Frequency: Upto 550 MHz
No. of Pairs: 4
Outer Jacket: CMP Rated Plenum
Conductor Size: 0.57 ± 0.003 mm
Conductor Type: Solid Conductor
Conductor Gauge: 23 AWG
No. Of Conductors: 8
Insulation Material: HDPE
Conductor Material: 100% Pure Copper
Working Capacitance: 5.6μf/100m (max)
Outer Jacket Diameter: 6.3mm±0.02mm
Operating Temperature: -30°C @ 75°C
